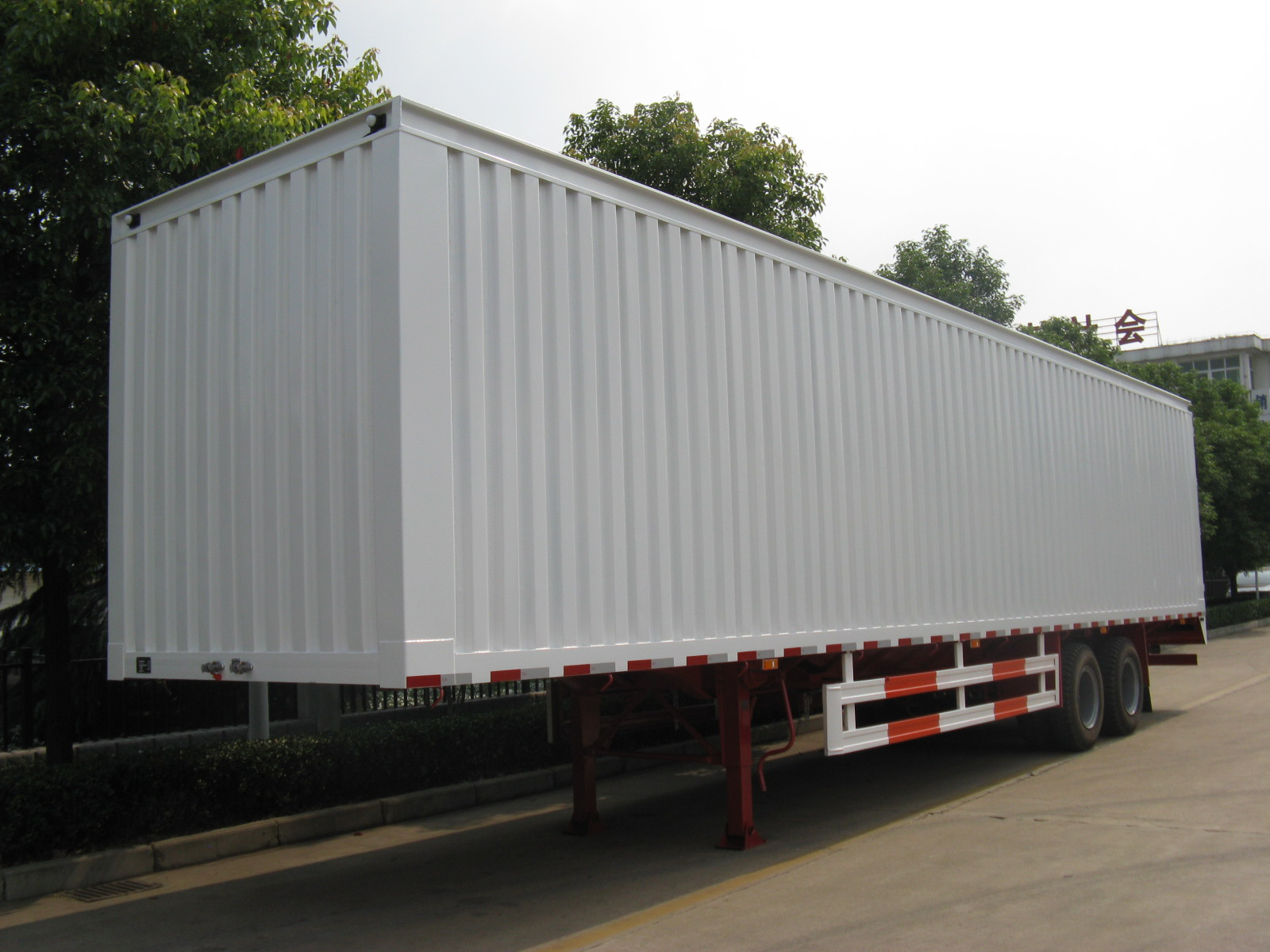

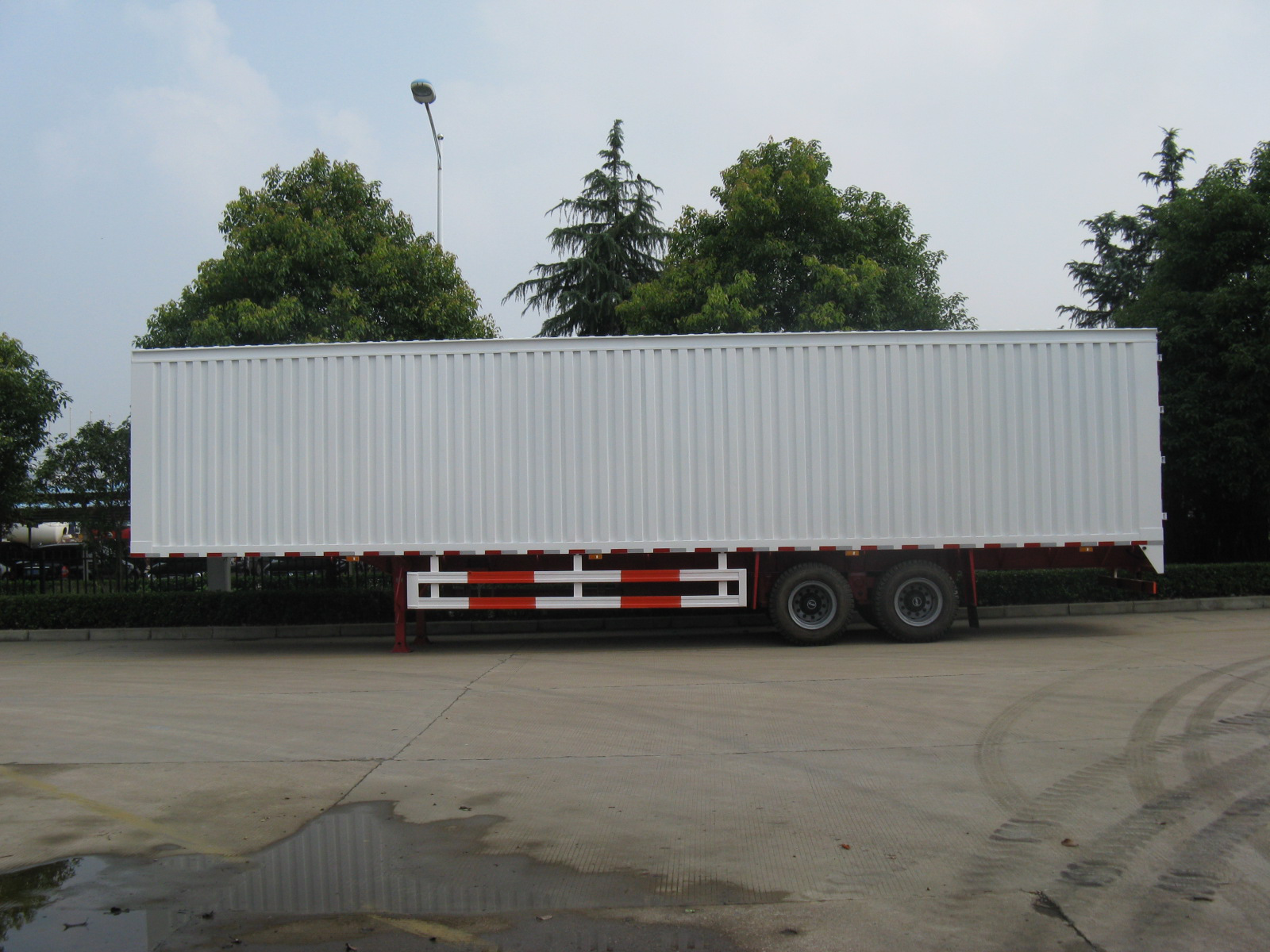

邁德盛牌YAD9401XXH型廂式運輸半掛車
DE sheng brand YAD9401XXH van semi - trailer
【主要技術參數】 [Main Technical parameters] | |||
產品** Product trademark | 邁德盛牌 DE sheng "brand | 產品型號 Product model | YAD9401XXH |
產品名稱 The product name | YAD9401XXH廂式運輸半掛車 The YAD9401XXH van transport semi-trailer | 外形尺寸(mm) External dimension (mm) | 13716×2500×4824 |
總質量(Kg) Total mass (Kg) | 45000 | 貨廂尺寸(mm) Cargo compartment size (mm) | 13698×2500×3414 |
額定載質量(Kg) Rated load (Kg) | 35000 | 接近角/離去角(°) Angle of approach/departure (°) | -/15 |
整備質量(Kg) Reconditioning mass (Kg) | 10000 | 前懸/后懸(mm) Front/Rear suspension (mm) | -/2600 |
軸數 Number of shaft | 3 | 軸距(mm) The wheelbase (mm | 7346+1310+1310, |
輪胎數 The wheelbase (mm) | 13 | 輪胎規格/輪輞（圈） Tire size/ Rim | 11.00 R20 18PR /8.00-20 |
軸荷(Kg) Axle weight (Kg) | 15000/30000 | **高車速(Km/h) Maximum speed (Km/h) | 80 |
其它 Other | 該車廂體頂部封閉,不可開啟;采用適用于牽引廂貨運輸半掛車的牽引車, 車長同軸距、后懸對應關系為:13716/7346+1310+1310/2600 ABS系統生產廠家為廣州瑞立科密汽車電子股份有限公司,型號為CM2XL-4S/2M; 側防護所用材料材質為鋁合金,與車架螺栓連接;后防護所用材料材質為Q235,與車架焊接連接;后部防護裝置的斷面尺寸為(mm):140×60或140×90,離地高度為500mm. TThe top of the carriage is closed and cannot be opened;Adopt a tractor suitable for towing van and cargo transport semi-trailer, The correspondence between car length and wheelbase and rear suspension is :13716/7346+1310+1310/2600 ABS system manufacturer is Guangzhou Ruili Kemi Automobile Electronics Co., LTD., model cm2XL-4S /2M; The side protection material is aluminum alloy, which is connected with the frame bolts;The material used for rear protection is Q235, which is welded with the frame;The section size of the rear protection device is (mm):140×60 or 140×90, and the height from the ground is 500mm | ||
