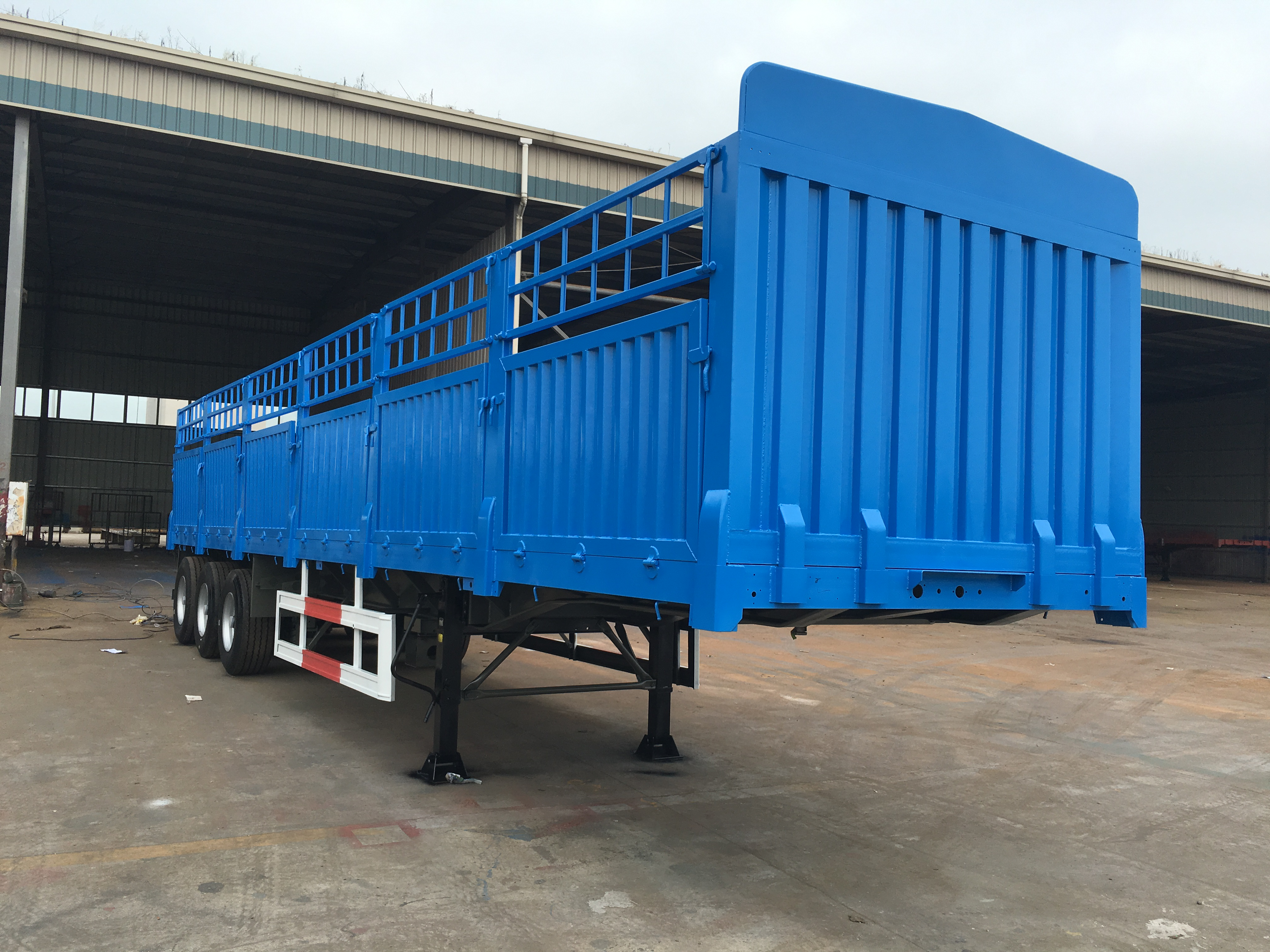

邁德盛牌YAD9402XCS倉柵式運輸半掛車
DE sheng brand YAD9402XCS barrel-type semi trailer
【主要技術參數】 [Main Technical parameters] | |||
產品** Product trademark | 邁德盛牌 DE sheng brand | 產品型號 Product model | YAD9402XCS |
產品名稱 The product name | YAD9401XCS倉柵運輸半掛車 The YAD9402XCSbarrel-type semi trailer | 外形尺寸(mm) External dimension (mm) | 13900×2550×2875 |
總質量(Kg) Total mass (Kg) | 66000 | 貨廂尺寸(mm) Cargo compartment size (mm | 12400,11900,11400×2410,2460×2200,2000,1800 |
額定載質量(Kg) Rated load (Kg) | 58500 | 接近角/離去角(°) Angle of approach/departure (°) | -/16 |
整備質量(Kg) Reconditioning mass (Kg | 7500 | 前懸/后懸(mm) Front/Rear suspension (mm) | -/1960 |
軸數 Number of shaft | 3 | 軸距(mm) The wheelbase (mm) | 7480+1310+1310 |
軸荷(Kg) Axle weight (Kg) | 21450/44550 | **高車速(Km/h) Maximum speed (Km/h) | 80 |
其它 Other | 該車采用適用于牽引倉柵運輸半掛車的牽引車, 車長同軸距、后懸對應關系為:13900/7480+1310+1310/2600 ABS系統生產廠家為廣州瑞立科密汽車電子股份有限公司,型號為CM2XL-4S/2M; 側防護所用材料材質為鋁合金,與車架螺栓連接;后防護所用材料材質為Q235,與車架焊接連接;后部防護裝置的斷面尺寸為(mm):140×60或140×90,離地高度為500mm. The car adopts a tractor suitable for the traction barn grille to transport semi-trailers. The correspondence between car length and wheelbase and rear suspension is :13900/7480+1310+1310/2600 ABS system manufacturer is Guangzhou Ruili Kemi Automobile Electronics Co., LTD., model cm2XL-4S /2M; The side protection material is aluminum alloy, which is connected with the frame bolts;The material used for rear protection is Q235, which is welded with the frame;The section size of the rear protection device is (mm):140×60 or 140×90, and the height from the ground is 500mm. | ||
