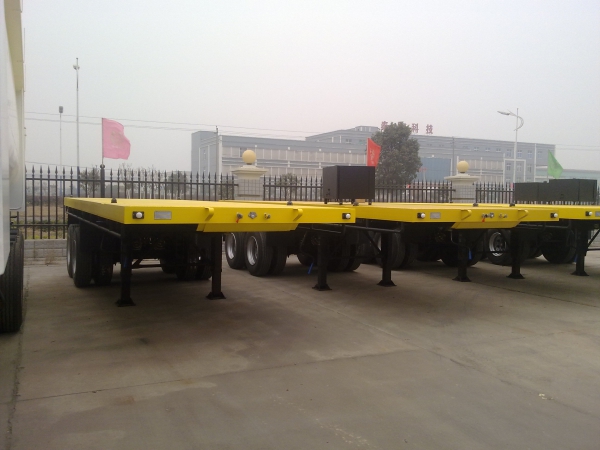

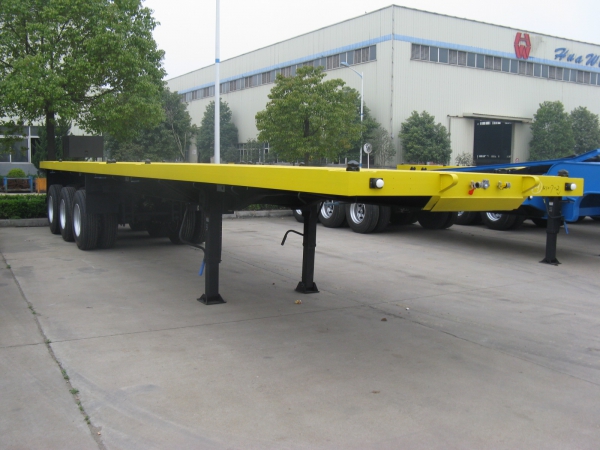

邁德盛牌YAD9403XPL平板運輸半掛車
DE sheng brand YAD9403XPL Flat bed semi trailer
【主要技術參數】 [Main Technical parameters] | |||
產品**: Product trademar | 邁德盛牌 DE sheng brand | 產品型號: Product model | YAD9403XP |
產品名稱: The product name | YAD9403XPL平板運輸半掛車 The YAD9403XXH Flat bed semi trailer | 外形尺寸(mm): External dimension (mm) | 13192×2550×1410 |
總質量(Kg) Total mass (Kg) | 42000 | 貨廂尺寸(mm) Cargo compartment size (mm) | / |
額定載質量(Kg) Rated load (Kg) | 35000 | 接近角/離去角(°) Angle of approach/departure (°) | -/16 |
整備質量(Kg) Reconditioning mass (Kg) | 7000 | 前懸/后懸(mm) Front/Rear suspension (mm) | -/2150 |
軸數 Number of shaft | 3 | 軸距(mm) The wheelbase (mm) | 6422+1310+1310, |
輪胎數 The wheelbase (mm) | 13 | 輪胎規格/輪輞（圈） Tire size/ Rim | 11.00 R20 18PR /8.00-20 |
軸荷(Kg) Axle weight (Kg) | 13650/28350 | **高車速(Km/h) Maximum speed (Km/h | 80 |
其它 Other | 該車適用于牽引平板運輸半掛車的牽引車,車長同軸距、后懸對應關系為:12192/6422+1310+1310/2150ABS系統生產廠家為廣州瑞立科密汽車電子股份有限公司,型號為CM2XL-4S/2M;側防護所用材料材質為鋁合金,與車架螺栓連接;后防護所用材料材質為Q235,與車架焊接連接;后部防護裝置的斷面尺寸為(mm):140×60或140×90,離地高度為500mm. The car is suitable for traction of flat plate transport semi trailer tractor, The correspondence between car length and wheelbase and rear suspension is as follows :12192/6422+1310+1310/2150ABS system manufacturer is Guangzhou Ruili Kemi Automobile Electronics Co., LTD., model cm2XL-4S /2M; The side protection material is aluminum alloy, which is connected with the frame bolts;The material used for rear protection is Q235, which is welded with the frame;The section size of the rear protection device is (mm):140×60 or 140×90, and the height from the ground is 500mm. | ||
